AZ88595 EB
AZ88595 EB

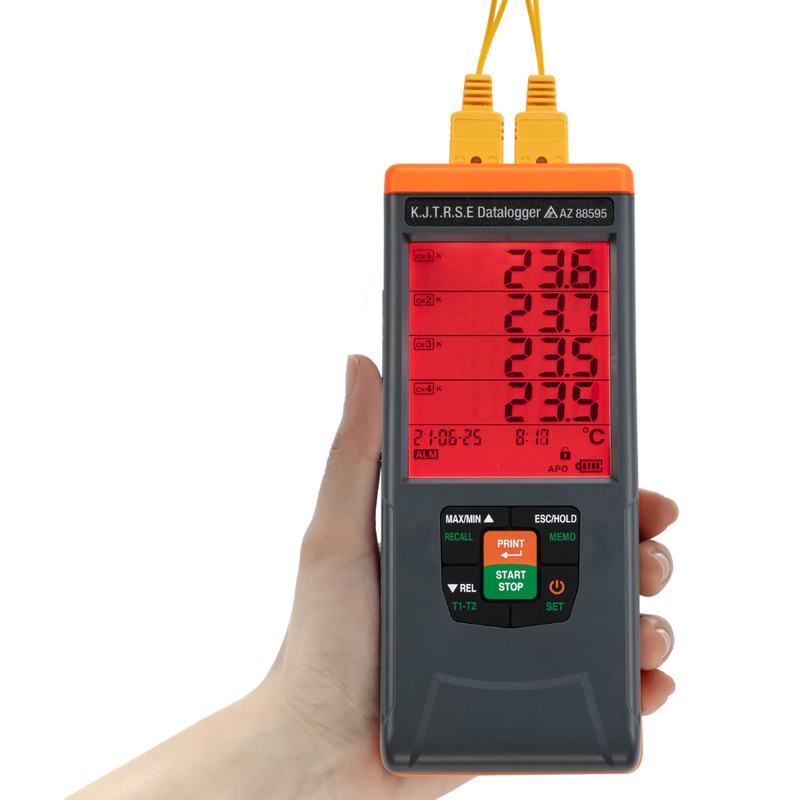

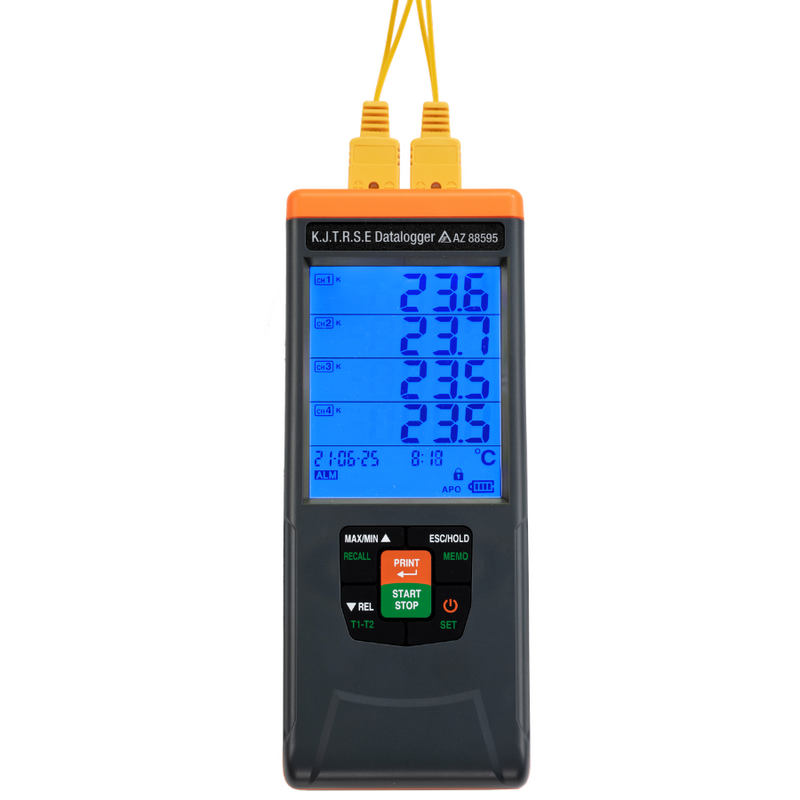

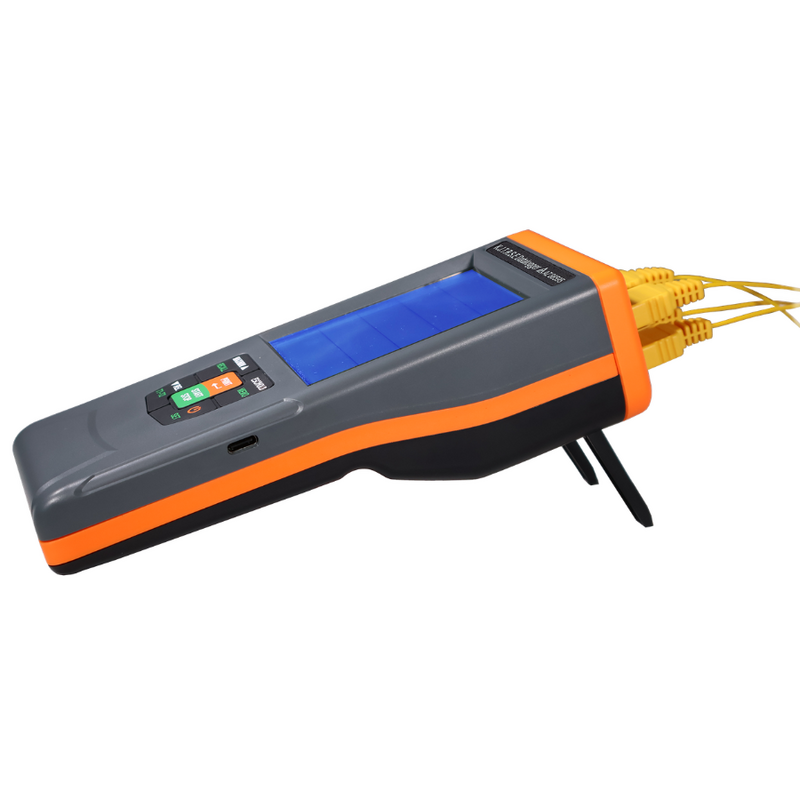

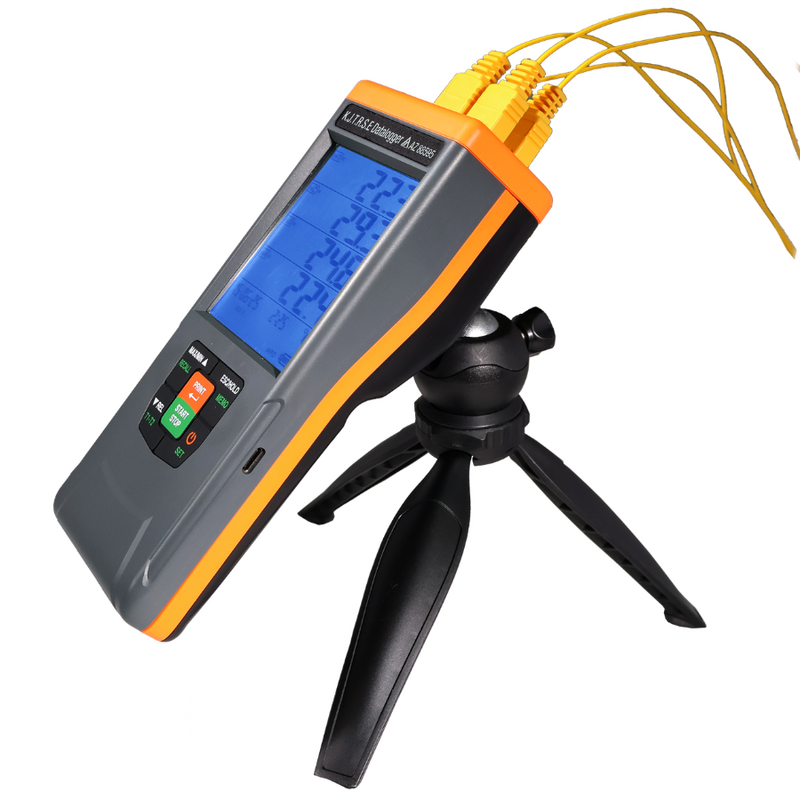

The AZ88595 4-Ch Thermocouple Logger is developed under high-quality manufacturing processes to ensure reliability and safety
Specifications
Technical parameters
| Measurement Channels | 4 Channels Thermocouple Input CH |
|---|---|
| Thermocouple Type | K / J / T / R / S / E Type - |
| Temperature Measurement Range | K Type: -200 ~ 1370 / J Type: -200 ~ 760 / T Type: -200 ~ 390 / R/S Type: 0 ~ 1760 / E Type: -200 ~ 736 °C |
| Temperature Accuracy | ±0.5 (<1000°C) ;±1 (>1000°C) °C |
| Data Memory | 48,000 (Auto Logging) ;99 (Manual Logging) Records |
| Sampling Rate | 1 / 2 / 5 / 10 / 15 / 30 sec ;1 / 2 / 5 / 10 / 15 / 30 / 60 / 90 min - |
