ITFF-49

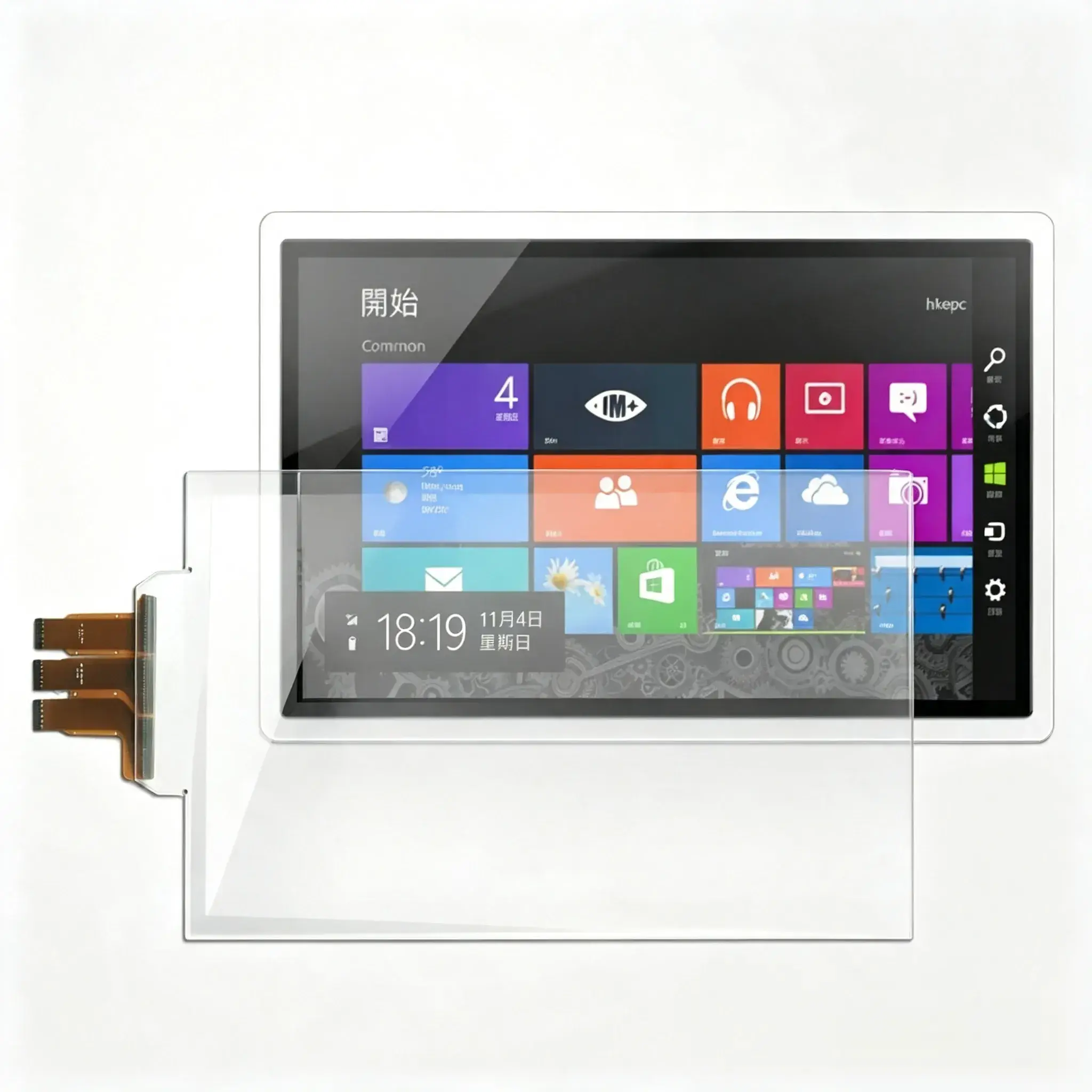

ITFF-49 49" flexible ultra-thin touch foil for large displays and smart glass. Seamless integration, 10-point touch. For commercial and hospitality applications. Gerteise.
Reference price: USD 95.00
Frequently Asked Questions
What hospitality applications suit the ITFF-49?
Hotel lobby information walls, restaurant self-ordering displays, cruise and resort wayfinding, and VIP-room smart glass control panels — anywhere premium finishes and reliable touch both matter.
Can it integrate with switchable privacy glass in meeting spaces?
Yes. The foil laminates into the same glass stack as PDLC film, creating partitions that switch from frosted private to clear interactive with touch control.
Should I choose the ITFF-49 or the ITFF-55?
If your display or glass panel is a standard 49" unit, choose the ITFF-49 — matching the foil to the existing panel avoids redesign. For new 55" panel purchases, the ITFF-55 fits. Send your panel model and Gerteise will confirm the match.
Is the touch layer visible when the installation is powered off?
Practically no. With ≥85% transparency and behind-glass mounting, an idle installation looks like ordinary glass or a standard display — the technology does not alter interior design.
Is it built for continuous commercial operation?
It uses professional-grade PCAP construction designed for daily long-hour use in public spaces, with the touch layer protected behind glass from wear.
Technical parameters
Technical parameters

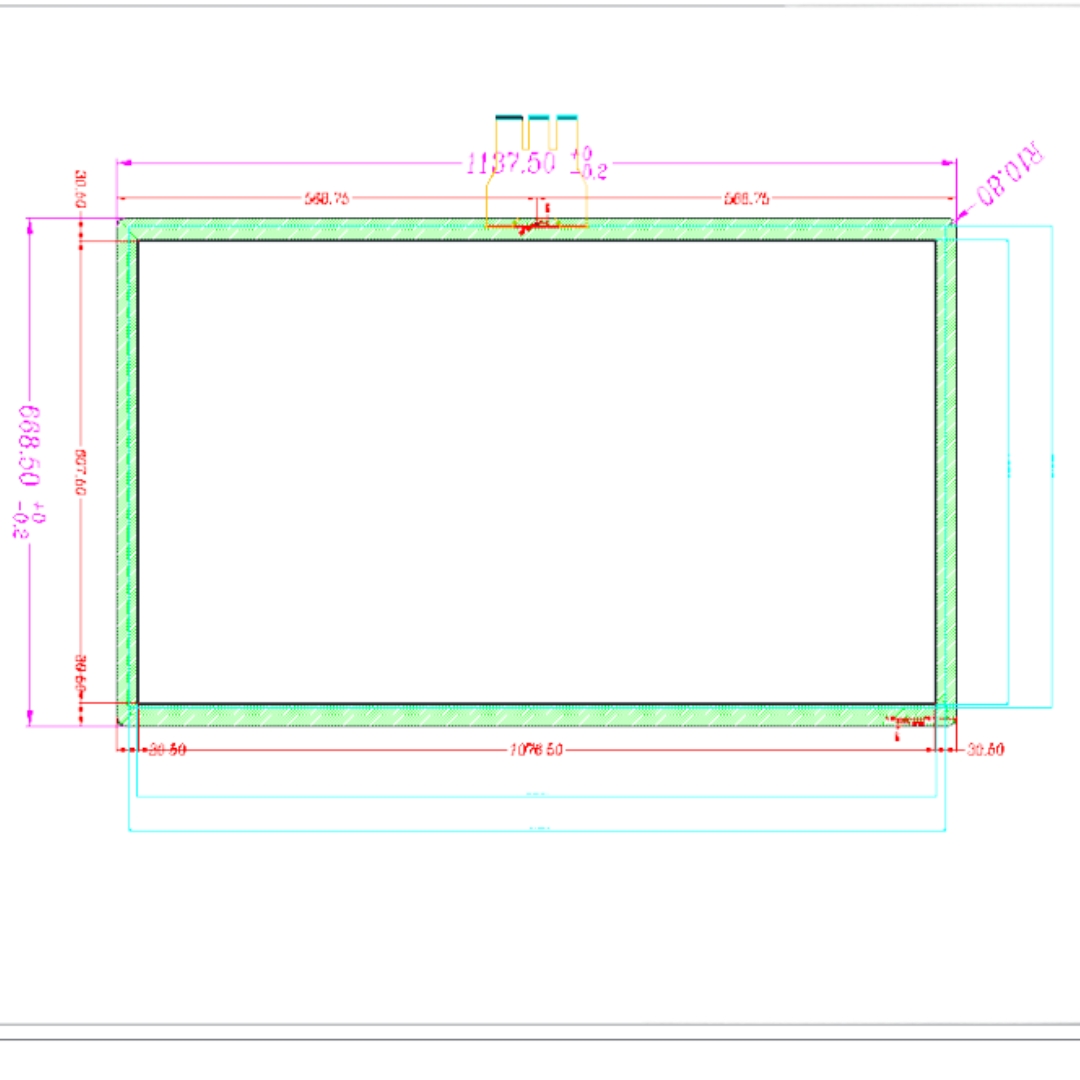

| Product structure | G+G . |
|---|---|
| AV dimension description | 49inch . |
| V.A. Size | 1076.5*607.5mm(±0.3mm) . |
| Total Thickness | 4.3mm (±0.3mm) . |
| Outline Dimension | 1137.5*668.5mm(-0.3mm) . |
| O.D. Fillet | R10.8mm(±0.3mm)×4 . |
| Coverlens Thickness | 3.0mm(±0.1mm) . |
| ITO Glass Size | 1105.1*634.35mm(±0.3mm) . |
| ITO Glass Thickness | 1.1mm(±0.05mm) . |
| Number of Channels | RX96*TX54 . |
| Support Contact | 10 . |
| Interface form | USB . |
| Work voltage | 5V . |
| Operating Temperature | -20-60℃ . |
| Operating Humidity | 20%RH-90%RH . |
| Transparency | ≥85% . |
| Haze | ≤3% . |
| Surface hardness | 6H . |
| Touch Technology | PCAP . |
