ITFF-65
ITFF-65 65" professional large-format touch foil for interactive walls and collaboration environments. 10-point multi-touch, high transparency. Gerteise.
Reference price: USD 113.00
Downloads
Frequently Asked Questions
Can several people collaborate on it at once?
Yes. Up to 10 touch points support 2–4 people brainstorming simultaneously on whiteboard and collaboration software — writing, dragging and resizing content side by side.
Does it work with meeting-room software like Teams or Zoom?
The foil provides the touch input layer; any Windows PC or Android device running Teams Rooms, Zoom Rooms or whiteboard apps can use it as a standard touchscreen — no special integration required.
Can the touch orientation be configured for portrait mounting?
Touch coordinate mapping can be rotated in software to match portrait or landscape mounting. Confirm your installation orientation with Gerteise before ordering so the configuration is set correctly.
What display should I pair it with?
Standard 65" commercial displays or conference flat panels work — match the foil's 1427.0×805.0mm active area to the panel's active area for full coverage. Gerteise can verify compatibility with your specific display model.
Can Gerteise advise on a full interactive-wall solution?
Yes — from panel matching, installation structure to sourcing. Submit your wall dimensions and use case through the inquiry form for a consultation and complete quotation.
Technical parameters
Technical parameters
| Product structure | G+G . |
|---|---|
| AV dimension description | 65nch . |
| V.A. Size | 1427.0*805.0mm(±0.3mm) . |
| Total Thickness | 4.3mm (±0.3mm) . |

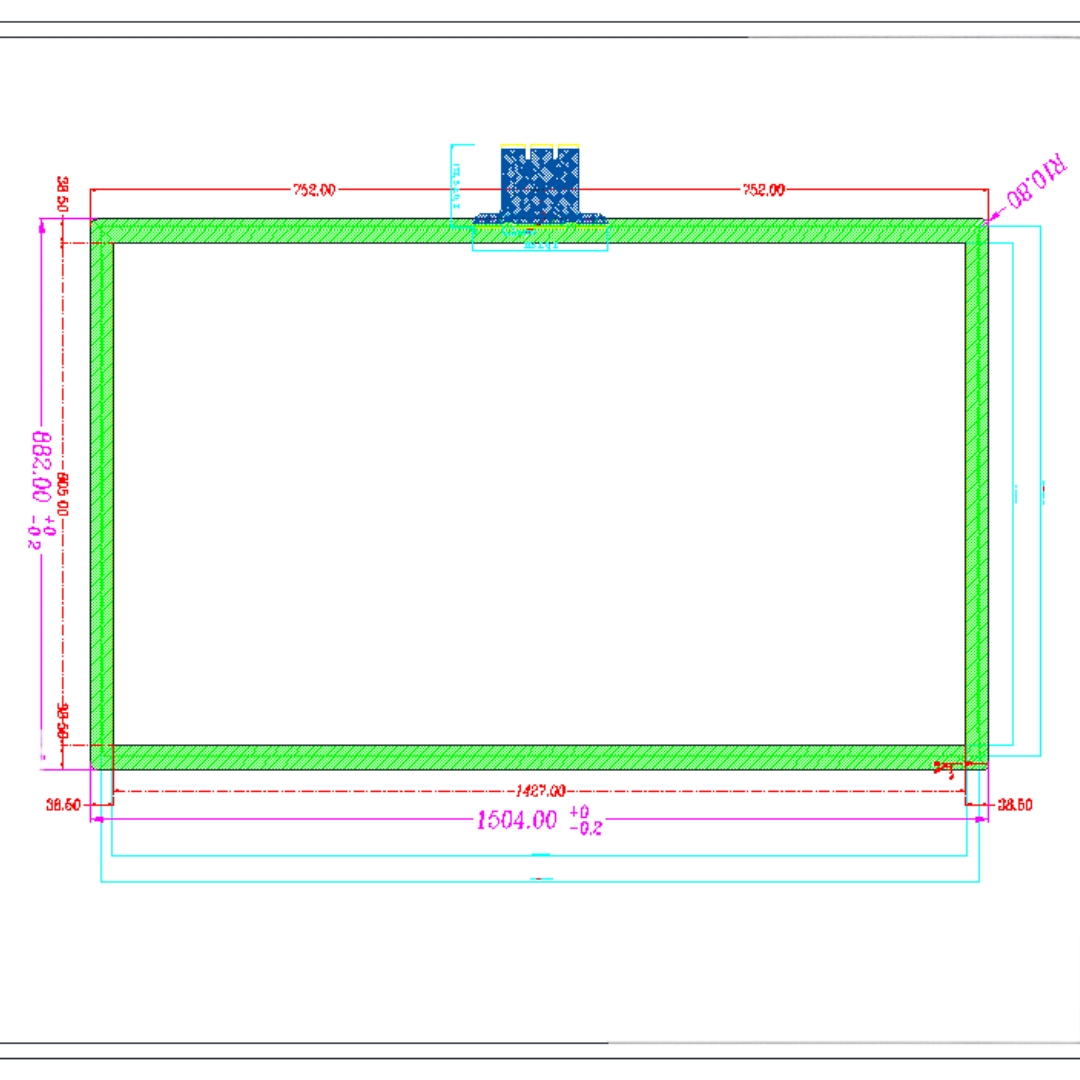

| Outline Dimension | 1504*882mm(-0.3mm) . |
| O.D. Fillet | R10.8mm(±0.3mm)×4 . |
| Coverlens Thickness | 3.0mm(±0.1mm) . |
| ITO Glass Size | 1469.48*848.72mm(±0.3mm) . |
| ITO Glass Thickness | 1.1mm(±0.05mm) . |
| Number of Channels | RX128*TX72 . |
| Touch Technology | PCAP . |
| Support Contact | Max40 . |
| Interface form | USB . |
| Work voltage | 5V . |
| Transparency | ≥85% . |
| Haze | ≤3% . |
| Surface hardness | 6H . |
| Operating Humidity | 20%RH-90%RH . |
| Operating Temperature | -20-60℃ . |
